BattSix products are built to order, there is generally a couple week lead-time. Only BattSix for Android is still being produces. Price is $249.00
Payment can be either Paypal or check.

Drop me an email to discuss any details of your requirements.
Thanks, Gary
gmayhak@aol.com
Golf Cars and Neighborhood Electric Vehicles Battery Pack Monitor
BattSix
The ultimate fuel gauge
free on the app store!
(click on the iPhone image)
To insure maximum life from your Golf Cart or Neighborhood Electric Vehicle battery pack it is necessary to keep track of the depth of discharge and balance of the individual batteries. One weak battery can cause the others to be over charged and shorten their life.

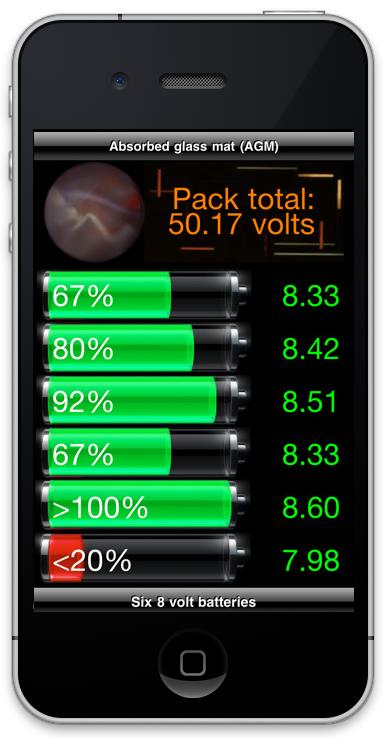

Key your voltage readings into BattSix and it produces numeric and graphic display of the battery pack status. Snap a screen shot for a permanent record.

Operating instructions...
Tap the bottom bar to select 6, 8 or 12 volt batteries.
Tap the top bar to select AGM, FLA or GEL battery type.
Tap the middle of the display to bring up the keyboard.
Key in your voltage readings with 2 decimal places ( key 6 volts as 6.00 etc.)




But what if your Golf Cart or NEV could communicate with your iPhone, iPod Touch, iPad or Android device and tell you how it's feeling?

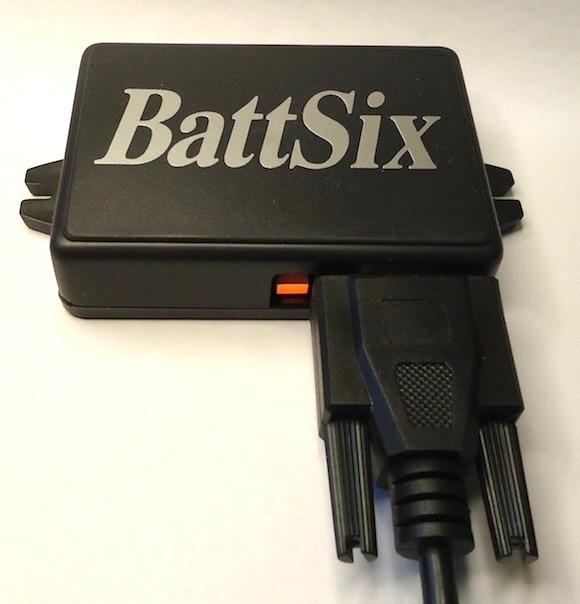

The BattSix hardware interface does just that! Don't let one shorted battery cell cause you to overcharge and destroy the whole pack. BattSix hardware monitors all six batteries and reports their status via bluetooth to your BattSix app. Advance warning of an imbalance allows you to take preventive measures to save the entire pack.

Temperature Compensation...
To insure that your BattSix app reports accurate state of charge, temperature must also be considered. BattSix hardware measures ambient temperature and performs complex computations to normalize the battery readings to 76 degrees fahrenheit before sending the readings to BattSix app. While the voltage values displayed on BattSix may be slightly different from the actual measurements they will allow BattSix to provide very accurate State of Charge information.

Real-time load test...

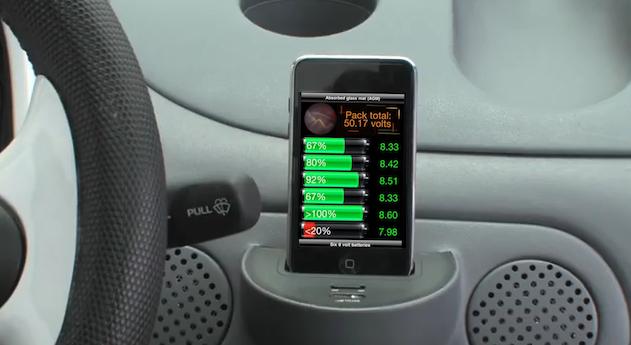

A failing battery can also be identified by a load test but unfortunately this test has been difficult and time consuming in the past. Your batteries can have near equal voltage when sitting idle but under load a weak battery's voltage will be lower than the others. You can identify this condition immediately by watching BattSix while driving the vehicle!

Pack Balancing...
BattSix hardware also provides 'gentle' balancing of your NEV battery pack by selectively powering itself from the highest voltage battery. It draws very little power but over a period of a few weeks your batteries will charge more evenly.

Environment friendly...
By driving an electric vehicle you are helping protect the environment, now you can do even more by extending the life of the pack and keeping batteries from unnecessarily ending up in landfills.
We also include a green BattSix decal for your vehicle.
Android version shipping now!
Apps for Android 4.0 and above. Requires BattSix module for Android.

Flooded Lead Acid 12 volt batteries, BattSix F12b

Gel Cell 12 volt batteries, BattSix G12b

Absorbed Glass Mat 12 volt batteries, BattSix A12b

Flooded Lead Acid 6 volt batteries, BattSix F6b
User feedback on BattSix for Android...

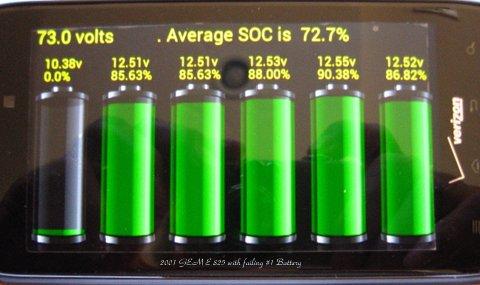

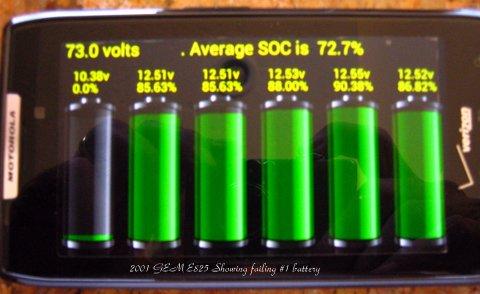

Here are two photos I took today after driving a few miles.  Notice #1 battery is failing!  I checked BattSix reading with my digital
volt/ohm meter and it was exactly the same to the .00 volts.
Amazing.  Before I took off on the test drive, all batteries were the
same 12.70 volts @ 100%.  I knew one or more batteries were having issues, but BattSix Android module isolated the problem quickly and precisely.
I have a new 12 Volt battery coming in a few days on warranty.
Thanks for the BattSix Android system.
Simple installation...

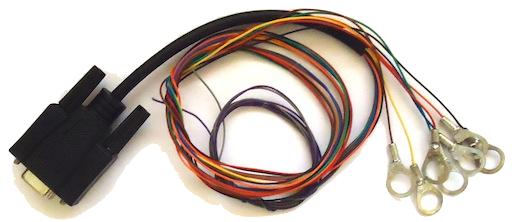

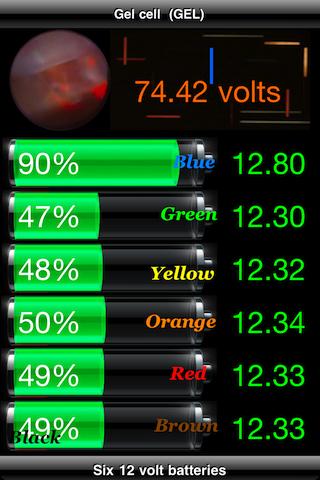

Only seven color-coded connections to the pack with included wing nuts.

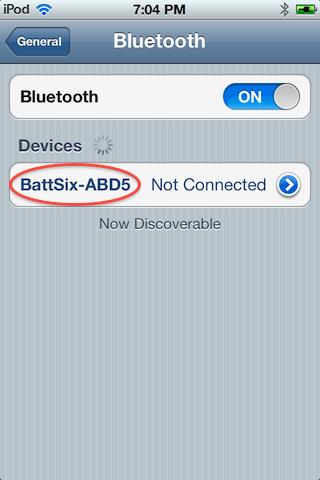

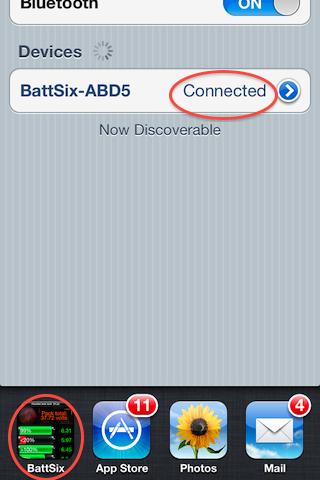

NEW! BattSix with built-in Bluetooth is designed to continuously transmit battery status when the battery harness is connected to BattSix. When you are not running the BattSix app you should turn the iPhone Bluetooth OFF (Settings, General, Bluetooth, slide to OFF)When you want to run the BattSix app turn Bluetooth ON (Settings, General, Bluetooth, slide to ON and tap on BattSix-)


When "Connected" launch the BattSix app,
If it's on the multitasking bar just click Home twice and tap on BattSix.

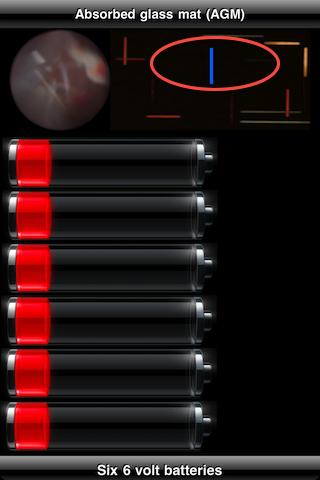

Select battery voltage and battery type, then tap the center of the screen. You should see the blue cursor moving, when the app synchronizes with BattSix it will start displaying battery voltages.
Remember to turn iPhone Bluetooth OFF when not running BattSix because the data stream could interfere with other apps.
BattSix owner feedback...

"I own a GEM with (6) FLA 12 volt batteries.
The installation was really easy. The instructions were good and the installation went fast and smooth.

It immediately has done its essential good by pointing me to a bad battery in the pack.
At rest the bad battery was several tenths below the rest of the pack, however as soon as I started the car (putting a load on the pack) it rolled off much quicker than the rest as I drove my GEM.

I was hoping it would be remedied with a single unit charge overnight. The Battery did recover and was corrected with the overnight charge.

Which I never would have known was needed without BattSix!"

Dave from Southern Minnesota



"USA internationell-PC (iPhone keyboard selection for bluetooth) works much better,
need to try more here,but I love it more and more :)
thanks for your work."

and...

"if i use keyboard layout USA internationell-PC it works 100%
on both battsix 1 and 2 :)"

Fredrik from Sweden

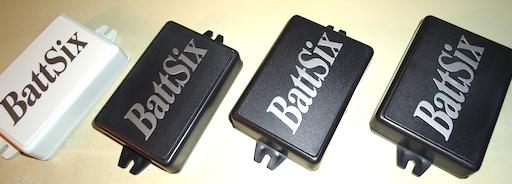

About BattSix products...
BattSix products are not intended as replacements for your vehicles on-board gauges, their purpose is to provide a view of how the individual batteries in the pack are performing. The State of Charge information provided by BattSix is calculated assuming the batteries are "at rest" (vehicle not being driven or charging).

The displayed information differs on the various BattSix products...
BattSix Dash Display & PRO
The battery graphs represent actual battery voltage, 0 volts to fully charged.
The color of the individual bar graphs indicate the State of Charge, Green indicates 40% or more remaining, Yellow indicates less than 40% and Red indicates less than 20%.
Battery plots are from left to right, 6 5 4 3 2 1.
Dash Display is powered from a key-switched 12 volt source.
Pro is powered by the combination of batteries 1,2 &3.
The voltage readings and graphs let you visualize any imbalance in the pack.

PRO can be programmed for different voltages and battery types by changing the settings on its SD card Config.txt file.
Dash Display is programmed at the factory for a specific battery voltage and type and can't be modified.
Both have a display resolution of 0.1 volt.

BattSix Bluetooth for iPhone or Android
There are 2 versions, 6&8 volts and 12 volts.
The battery graphs represent "at rest" State of Charge from 0 to 100%
The voltage readings and graphs let you visualize any imbalance in the pack.
Android battery plots are from left to right, 1 2 3 4 5 6.
iPhone battery plots are from top to bottom, 6 5 4 3 2 1.
The Bluetooth versions have a built-in Li-Ion battery, they maintain its charge by charging from the highest voltage battery in the pack between sending data to the iPhone or Android device. This provides a 'gentle balancing' of the pack over time.
Both have a display resolution of 0.01 volt.
BattSix iPhone sends data at 10 second intervals depending on time it spends maintaing its internal battery.
BattSix Android sends data ~ every 5 minutes or whenever requested by pressing its button.
